Keras has a bug on its function plot_model(). It works fine for simple models
but when you have nested models, i.e., a model that depends on some
submodels, the plot would be wrong. Specifically, it would be wrong if the
submodel is not single-input, single-output (i.e., it must be created using
functional API). It would be misleading when you depend on the plot to check
the architecture.
To see what’s wrong, we can try out this test code. Adapted from https://github.com/tensorflow/tensorflow/issues/42101 and it requires Graphviz installation to work:
import tensorflow as tf
def test1():
inn = tf.keras.Input((1,),name="in1")
d1 = tf.keras.layers.Dense(1, name="d1")(inn)
d2 = tf.keras.layers.Dense(1, name="d2")(inn)
m1 = tf.keras.Model(inputs=inn, outputs=[d1,d2], name="model1")
in2_1 = tf.keras.Input((1,),name="in1")
in2_2 = tf.keras.Input((1,),name="in2")
m2 = tf.keras.Model(inputs=[in2_1,in2_2],outputs=[in2_1 + in2_2],name="model2")
# combined model
in0 = tf.keras.Input((1,),name="in0")
m = tf.keras.Model(inputs=in0, outputs=m2(m1(in0)))
tf.keras.utils.plot_model(m, to_file="model1.png", show_shapes=True, expand_nested=True)
def test2():
inn = tf.keras.Input((1,),name="in1")
d1 = tf.keras.layers.Dense(1, name="d1")(inn)
d2 = tf.keras.layers.Dense(1, name="d2")(inn)
m1 = tf.keras.Model(inputs=inn, outputs=[d1,d2], name="model1")
d3 = tf.keras.layers.Dense(1, name="d1")
d4 = tf.keras.layers.Dense(1, name="d2")
# combined model
in0 = tf.keras.Input((1,),name="in0")
out1, out2 = m1(in0)
add = tf.keras.layers.Add()
m = tf.keras.Model(inputs=in0, outputs=add([d3(out1),d4(out2)]))
tf.keras.utils.plot_model(m, to_file="model2.png", show_shapes=True, expand_nested=True)
test1()
test2()

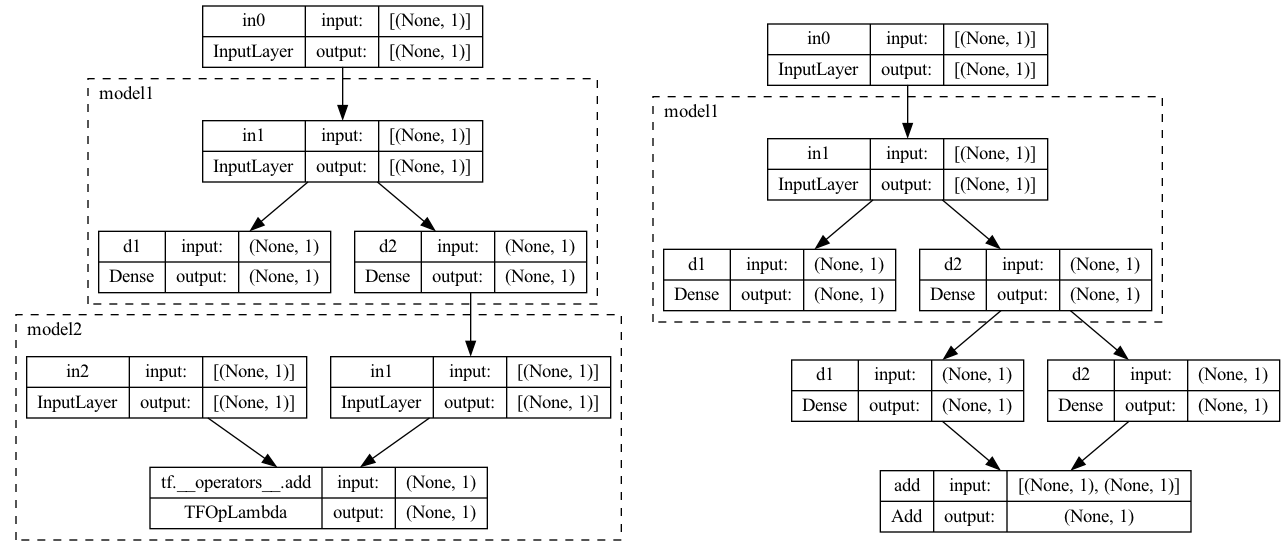

What it gives you are the following:

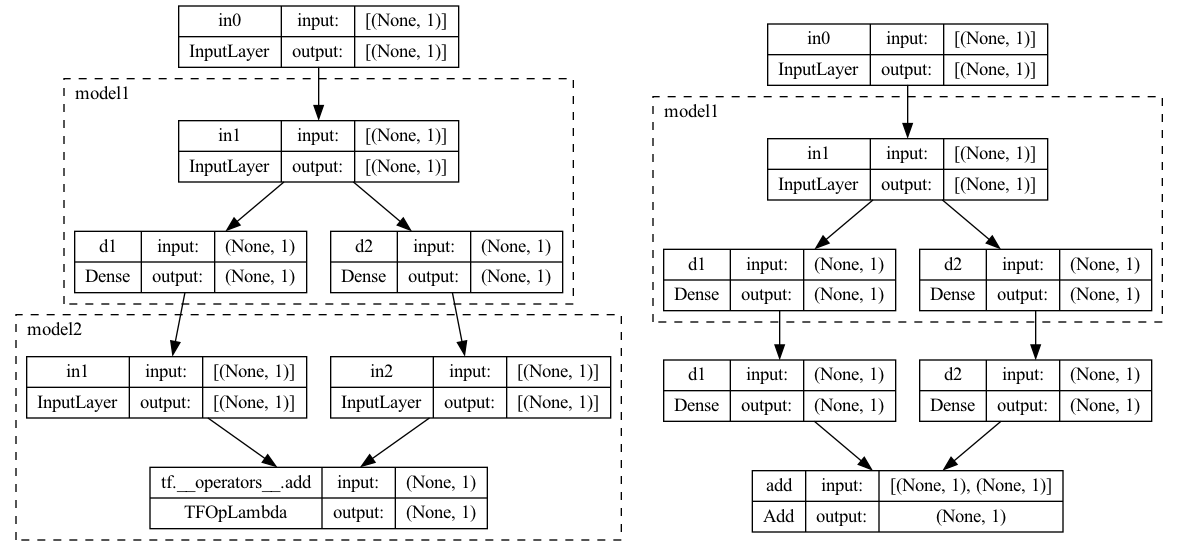

Which, in fact, they should be like this:
To know what’s wrong, let’s do this:
>>> import tensorflow as tf
>>> tf.keras.utils.plot_model.__code__.co_filename
'/opt/homebrew/lib/python3.10/site-packages/keras/utils/vis_utils.py'
So we know the plot_model() function is using Keras’ code (depends on
environment, not always the case, as there is a copy of the same code in
TensorFlow as well). In that code, we can see plot_model() create the picture
using model_to_dot(), which is to using pydot to generate Graphviz language
representation.
The problem is with model_to_dot(). We see the following over there:
def model_to_dot(...):
...
sub_n_first_node = {}
sub_n_last_node = {}
...
# Create graph nodes.
for i, layer in enumerate(layers):
...
if expand_nested and isinstance(layer, functional.Functional):
submodel_not_wrapper = model_to_dot(...)
# sub_n : submodel_not_wrapper
sub_n_nodes = submodel_not_wrapper.get_nodes()
sub_n_first_node[layer.name] = sub_n_nodes[0]
sub_n_last_node[layer.name] = sub_n_nodes[-1]
dot.add_subgraph(submodel_not_wrapper)
...
# Connect nodes with edges.
for i, layer in enumerate(layers):
...
layer_id = str(id(layer))
for i, node in enumerate(layer._inbound_nodes):
node_key = layer.name + "_ib-" + str(i)
if node_key in model._network_nodes:
for inbound_layer in tf.nest.flatten(node.inbound_layers):
inbound_layer_id = str(id(inbound_layer))
if not expand_nested:
...
else:
# if inbound_layer is not Model or wrapped Model
if not isinstance(
inbound_layer, functional.Functional
) and not is_wrapped_model(inbound_layer):
# if current layer is not Model or wrapped Model
if not isinstance(
layer, functional.Functional
) and not is_wrapped_model(layer):
assert dot.get_node(inbound_layer_id)
assert dot.get_node(layer_id)
add_edge(dot, inbound_layer_id, layer_id)
# if current layer is Model
elif isinstance(layer, functional.Functional):
add_edge(
dot,
inbound_layer_id,
sub_n_first_node[layer.name].get_name(),
)
# if current layer is wrapped Model
elif is_wrapped_model(layer):
add_edge(dot, inbound_layer_id, layer_id)
name = sub_w_first_node[
layer.layer.name
].get_name()
add_edge(dot, layer_id, name)
# if inbound_layer is Model
elif isinstance(inbound_layer, functional.Functional):
name = sub_n_last_node[
inbound_layer.name
].get_name()
if isinstance(layer, functional.Functional):
output_name = sub_n_first_node[
layer.name
].get_name()
add_edge(dot, name, output_name)
else:
add_edge(dot, name, layer_id)
# if inbound_layer is wrapped Model
elif is_wrapped_model(inbound_layer):
inbound_layer_name = inbound_layer.layer.name
add_edge(
dot,
sub_w_last_node[inbound_layer_name].get_name(),
layer_id,
)
return dot
In Keras, a submodel can be a wrapped model (i.e., the TimeDistributed
layer and Bidirectional layer, which are related to recurrent architectures)
or a functional model.
Functional model can be complicated but in the above, we remember only the
first and last node from a functional model and connect the input and output to
them. What if the input/output are not the first or last? What if there are
multiple input or multiple output? Those are the cases that the test code above
failed.
Fixing this is not difficult but we need a new approach of identifying what are the nodes connect into or out of the submodel.
A TensorFlow/Keras model is manipulating tensors. A tensor is an object with a name. However, a tensor does not remember the layer it is associated with. Only the layer remembers the tensor. In a model, we can find out its input and output tensors. However, these tensors would not allow you to trace the connections.
So the solution is to use the name of tensors. It is required that layers immediately used by a model carry unique names. Layers of different models can share the name, but when we combined them into a bigger model, the model name will be prefixed to it like a file system path. With the name of a model, and the name of a layer, we can identify which layer in a bigger model produces a particular tensor.
In code, it means, first, remember all output tensors and associate with the layer id (which are the node names in Graphviz); and return the assocation as an attribute in the Graphviz graph:
def model_to_dot(...):
...
tensors_map = {}
...
for i, layer in enumerate(layers):
...
layer_id = str(id(layer))
try:
if isinstance(layer.output, list):
for tensor in layer.output:
tensors_map[tensor.name] = layer_id
else:
tensors_map[layer.output.name] = layer_id
except AttributeError:
pass # layer.output not exists
...
dot._tensors_map = tensors_map
return dot
and then, when we obtained a subgraph (i.e., from a submodel), we merge the name-layer map:
if isinstance(layer, Wrapper):
if expand_nested and isinstance(layer.layer, functional.Functional):
submodel_wrapper = model_to_dot(layer.layer, ...)
# sub_w : submodel_wrapper
sub_w_nodes = submodel_wrapper.get_nodes()
sub_w_first_node[layer.layer.name] = sub_w_nodes[0]
sub_w_last_node[layer.layer.name] = sub_w_nodes[-1]
dot.add_subgraph(submodel_wrapper)
for key, val in submodel_wrapper._tensors_map.items():
tensors_map[key] = val
tensors_map[f"{layer.name}/{key}"] = val
else:
layer_name = f"{layer_name}({layer.layer.name})"
child_class_name = layer.layer.__class__.__name__
class_name = f"{class_name}({child_class_name})"
if expand_nested and isinstance(layer, functional.Functional):
submodel_not_wrapper = model_to_dot(layer, ...)
# sub_n : submodel_not_wrapper
dot.add_subgraph(submodel_not_wrapper)
for key, val in submodel_not_wrapper._tensors_map.items():
tensors_map[key] = val
tensors_map[f"{layer.name}/{key}"] = val
This way, we get all the nodes ready. Now the edges.
# Connect nodes with edges.
for i, layer in enumerate(layers):
...
layer_id = str(id(layer))
if not expand_nested:
...
elif isinstance(layer, functional.Functional):
# if layer is Model, we connect based on input tensors
sources, targets = [], []
for node in layer.inbound_nodes:
for tensor in tf.nest.flatten(node.input_tensors):
sources.append(tensors_map[tensor.name])
for tensor in tf.nest.flatten(layer.input):
targets.append(str(id(tensor.node.layer)))
while len(targets) < len(sources):
targets.append(layer_id)
for s, t in zip(sources, targets):
add_edge(dot, s, t)
if is_wrapped_model(layer):
name = sub_w_first_node[layer.layer.name].get_name()
add_edge(dot, layer_id, name)
else:
for i, node in enumerate(layer._inbound_nodes):
node_key = layer.name + "_ib-" + str(i)
if node_key not in model._network_nodes:
continue
for inbound_layer in tf.nest.flatten(node.inbound_layers):
inbound_layer_id = str(id(inbound_layer))
if not expand_nested:
...
else:
# if inbound_layer is not Model or wrapped Model
if not isinstance(
inbound_layer, functional.Functional
) and not is_wrapped_model(inbound_layer):
...
# if inbound_layer is Model
elif isinstance(inbound_layer, functional.Functional):
sources = []
for tensor in tf.nest.flatten(layer.input):
source = tensors_map[tensor.name]
add_edge(dot, source, layer_id)
# if inbound_layer is wrapped Model
elif is_wrapped_model(inbound_layer):
...
Basically, we handle the case of connecting from or to a functional submodel differently in the sense that we will figure out the tensor connections, by name, using the name-layer map we built earlier.
The complete code is as follows,
@keras_export("keras.utils.model_to_dot")
def model_to_dot(
model,
show_shapes=False,
show_dtype=False,
show_layer_names=True,
rankdir="TB",
expand_nested=False,
dpi=96,
subgraph=False,
layer_range=None,
show_layer_activations=False,
):
"""Convert a Keras model to dot format.
Args:
model: A Keras model instance.
show_shapes: whether to display shape information.
show_dtype: whether to display layer dtypes.
show_layer_names: whether to display layer names.
rankdir: `rankdir` argument passed to PyDot,
a string specifying the format of the plot:
'TB' creates a vertical plot;
'LR' creates a horizontal plot.
expand_nested: whether to expand nested models into clusters.
dpi: Dots per inch.
subgraph: whether to return a `pydot.Cluster` instance.
layer_range: input of `list` containing two `str` items, which is the
starting layer name and ending layer name (both inclusive) indicating
the range of layers for which the `pydot.Dot` will be generated. It
also accepts regex patterns instead of exact name. In such case, start
predicate will be the first element it matches to `layer_range[0]`
and the end predicate will be the last element it matches to
`layer_range[1]`. By default `None` which considers all layers of
model. Note that you must pass range such that the resultant subgraph
must be complete.
show_layer_activations: Display layer activations (only for layers that
have an `activation` property).
Returns:
A `pydot.Dot` instance representing the Keras model or
a `pydot.Cluster` instance representing nested model if
`subgraph=True`.
Raises:
ValueError: if `model_to_dot` is called before the model is built.
ImportError: if pydot is not available.
"""
if not model.built:
raise ValueError(
"This model has not yet been built. "
"Build the model first by calling `build()` or by calling "
"the model on a batch of data."
)
from keras.engine import functional
from keras.engine import sequential
from keras.layers import Wrapper
if not check_pydot():
raise ImportError(
"You must install pydot (`pip install pydot`) for "
"model_to_dot to work."
)
if subgraph:
dot = pydot.Cluster(style="dashed", graph_name=model.name)
dot.set("label", model.name)
dot.set("labeljust", "l")
else:
dot = pydot.Dot()
dot.set("rankdir", rankdir)
dot.set("concentrate", True)
dot.set("dpi", dpi)
dot.set_node_defaults(shape="record")
if layer_range is not None:
if len(layer_range) != 2:
raise ValueError(
"layer_range must be of shape (2,). Received: "
f"layer_range = {layer_range} of length {len(layer_range)}"
)
if not isinstance(layer_range[0], str) or not isinstance(
layer_range[1], str
):
raise ValueError(
"layer_range should contain string type only. "
f"Received: {layer_range}"
)
layer_range = layer_utils.get_layer_index_bound_by_layer_name(
model, layer_range
)
if layer_range[0] < 0 or layer_range[1] > len(model.layers):
raise ValueError(
"Both values in layer_range should be in range (0, "
f"{len(model.layers)}. Received: {layer_range}"
)
tensors_map = {}
sub_w_first_node = {}
sub_w_last_node = {}
layers = model.layers
if not model._is_graph_network:
node = pydot.Node(str(id(model)), label=model.name)
dot.add_node(node)
return dot
elif isinstance(model, sequential.Sequential):
if not model.built:
model.build()
layers = super(sequential.Sequential, model).layers
# Create graph nodes.
for i, layer in enumerate(layers):
if (layer_range) and (i < layer_range[0] or i >= layer_range[1]):
continue
layer_id = str(id(layer))
try:
if isinstance(layer.output, list):
for tensor in layer.output:
tensors_map[tensor.name] = layer_id
else:
tensors_map[layer.output.name] = layer_id
except AttributeError:
pass # layer.output not exists
# Append a wrapped layer's label to node's label, if it exists.
layer_name = layer.name
class_name = layer.__class__.__name__
if isinstance(layer, Wrapper):
if expand_nested and isinstance(layer.layer, functional.Functional):
submodel_wrapper = model_to_dot(
layer.layer,
show_shapes,
show_dtype,
show_layer_names,
rankdir,
expand_nested,
subgraph=True,
show_layer_activations=show_layer_activations,
)
# sub_w : submodel_wrapper
sub_w_nodes = submodel_wrapper.get_nodes()
sub_w_first_node[layer.layer.name] = sub_w_nodes[0]
sub_w_last_node[layer.layer.name] = sub_w_nodes[-1]
dot.add_subgraph(submodel_wrapper)
for key, val in submodel_wrapper._tensors_map.items():
tensors_map[key] = val
tensors_map[f"{layer.name}/{key}"] = val
else:
layer_name = f"{layer_name}({layer.layer.name})"
child_class_name = layer.layer.__class__.__name__
class_name = f"{class_name}({child_class_name})"
if expand_nested and isinstance(layer, functional.Functional):
submodel_not_wrapper = model_to_dot(
layer,
show_shapes,
show_dtype,
show_layer_names,
rankdir,
expand_nested,
subgraph=True,
show_layer_activations=show_layer_activations,
)
# sub_n : submodel_not_wrapper
dot.add_subgraph(submodel_not_wrapper)
for key, val in submodel_not_wrapper._tensors_map.items():
tensors_map[key] = val
tensors_map[f"{layer.name}/{key}"] = val
# Create node's label.
label = class_name
# Rebuild the label as a table including the layer's activation.
if (
show_layer_activations
and hasattr(layer, "activation")
and layer.activation is not None
):
if hasattr(layer.activation, "name"):
activation_name = layer.activation.name
elif hasattr(layer.activation, "__name__"):
activation_name = layer.activation.__name__
else:
activation_name = str(layer.activation)
label = "{%s|%s}" % (label, activation_name)
# Rebuild the label as a table including the layer's name.
if show_layer_names:
if not layer.trainable:
label = f"{layer_name}*|{label}"
else:
label = f"{layer_name}|{label}"
# Rebuild the label as a table including the layer's dtype.
if show_dtype:
def format_dtype(dtype):
if dtype is None:
return "?"
else:
return str(dtype)
label = f"{label}|{format_dtype(layer.dtype)}"
# Rebuild the label as a table including input/output shapes.
if show_shapes:
def format_shape(shape):
return (
str(shape)
.replace(str(None), "None")
.replace("{", "/{")
.replace("}", "/}")
)
try:
outputlabels = format_shape(layer.output_shape)
except AttributeError:
outputlabels = "?"
if hasattr(layer, "input_shape"):
inputlabels = format_shape(layer.input_shape)
elif hasattr(layer, "input_shapes"):
inputlabels = ", ".join(
[format_shape(ishape) for ishape in layer.input_shapes]
)
else:
inputlabels = "?"
label = "{%s}|{input:|output:}|{{%s}|{%s}}" % (
label,
inputlabels,
outputlabels,
)
if not expand_nested or not isinstance(layer, functional.Functional):
node = pydot.Node(layer_id, label=label)
dot.add_node(node)
# Connect nodes with edges.
for i, layer in enumerate(layers):
if (layer_range) and (i <= layer_range[0] or i >= layer_range[1]):
continue
layer_id = str(id(layer))
if not expand_nested:
for i, node in enumerate(layer._inbound_nodes):
node_key = layer.name + "_ib-" + str(i)
if node_key not in model._network_nodes:
continue
for inbound_layer in tf.nest.flatten(node.inbound_layers):
inbound_layer_id = str(id(inbound_layer))
assert dot.get_node(inbound_layer_id)
assert dot.get_node(layer_id)
add_edge(dot, inbound_layer_id, layer_id)
elif isinstance(layer, functional.Functional):
# if layer is Model, we connect based on input tensors
sources, targets = [], []
for node in layer.inbound_nodes:
for tensor in tf.nest.flatten(node.input_tensors):
sources.append(tensors_map[tensor.name])
for tensor in tf.nest.flatten(layer.input):
targets.append(str(id(tensor.node.layer)))
while len(targets) < len(sources):
targets.append(layer_id)
for s, t in zip(sources, targets):
add_edge(dot, s, t)
if is_wrapped_model(layer):
name = sub_w_first_node[layer.layer.name].get_name()
add_edge(dot, layer_id, name)
else:
for i, node in enumerate(layer._inbound_nodes):
node_key = layer.name + "_ib-" + str(i)
if node_key not in model._network_nodes:
continue
for inbound_layer in tf.nest.flatten(node.inbound_layers):
inbound_layer_id = str(id(inbound_layer))
if not expand_nested:
assert dot.get_node(inbound_layer_id)
assert dot.get_node(layer_id)
add_edge(dot, inbound_layer_id, layer_id)
else:
# if inbound_layer is not Model or wrapped Model
if not isinstance(
inbound_layer, functional.Functional
) and not is_wrapped_model(inbound_layer):
# if current layer is not Model or wrapped Model
if not is_wrapped_model(layer):
assert dot.get_node(inbound_layer_id)
assert dot.get_node(layer_id)
add_edge(dot, inbound_layer_id, layer_id)
# if current layer is wrapped Model
elif is_wrapped_model(layer):
add_edge(dot, inbound_layer_id, layer_id)
name = sub_w_first_node[
layer.layer.name
].get_name()
add_edge(dot, layer_id, name)
# if inbound_layer is Model
elif isinstance(inbound_layer, functional.Functional):
sources = []
for tensor in tf.nest.flatten(layer.input):
source = tensors_map[tensor.name]
add_edge(dot, source, layer_id)
# if inbound_layer is wrapped Model
elif is_wrapped_model(inbound_layer):
inbound_layer_name = inbound_layer.layer.name
add_edge(
dot,
sub_w_last_node[inbound_layer_name].get_name(),
layer_id,
)
dot._tensors_map = tensors_map
return dot
and the diff:
--- vis_utils.py.orig 2022-12-14 20:21:50
+++ vis_utils.py.new 2022-12-24 12:34:56
@@ -173,8 +173,7 @@
f"{len(model.layers)}. Received: {layer_range}"
)
- sub_n_first_node = {}
- sub_n_last_node = {}
+ tensors_map = {}
sub_w_first_node = {}
sub_w_last_node = {}
@@ -194,6 +193,14 @@
continue
layer_id = str(id(layer))
+ try:
+ if isinstance(layer.output, list):
+ for tensor in layer.output:
+ tensors_map[tensor.name] = layer_id
+ else:
+ tensors_map[layer.output.name] = layer_id
+ except AttributeError:
+ pass # layer.output not exists
# Append a wrapped layer's label to node's label, if it exists.
layer_name = layer.name
@@ -209,12 +216,16 @@
rankdir,
expand_nested,
subgraph=True,
+ show_layer_activations=show_layer_activations,
)
# sub_w : submodel_wrapper
sub_w_nodes = submodel_wrapper.get_nodes()
sub_w_first_node[layer.layer.name] = sub_w_nodes[0]
sub_w_last_node[layer.layer.name] = sub_w_nodes[-1]
dot.add_subgraph(submodel_wrapper)
+ for key, val in submodel_wrapper._tensors_map.items():
+ tensors_map[key] = val
+ tensors_map[f"{layer.name}/{key}"] = val
else:
layer_name = f"{layer_name}({layer.layer.name})"
child_class_name = layer.layer.__class__.__name__
@@ -229,12 +240,13 @@
rankdir,
expand_nested,
subgraph=True,
+ show_layer_activations=show_layer_activations,
)
# sub_n : submodel_not_wrapper
- sub_n_nodes = submodel_not_wrapper.get_nodes()
- sub_n_first_node[layer.name] = sub_n_nodes[0]
- sub_n_last_node[layer.name] = sub_n_nodes[-1]
dot.add_subgraph(submodel_not_wrapper)
+ for key, val in submodel_not_wrapper._tensors_map.items():
+ tensors_map[key] = val
+ tensors_map[f"{layer.name}/{key}"] = val
# Create node's label.
label = class_name
@@ -255,7 +267,10 @@
# Rebuild the label as a table including the layer's name.
if show_layer_names:
- label = f"{layer_name}|{label}"
+ if not layer.trainable:
+ label = f"{layer_name}*|{label}"
+ else:
+ label = f"{layer_name}|{label}"
# Rebuild the label as a table including the layer's dtype.
if show_dtype:
@@ -305,11 +320,38 @@
if (layer_range) and (i <= layer_range[0] or i >= layer_range[1]):
continue
layer_id = str(id(layer))
- for i, node in enumerate(layer._inbound_nodes):
- node_key = layer.name + "_ib-" + str(i)
- if node_key in model._network_nodes:
+ if not expand_nested:
+ for i, node in enumerate(layer._inbound_nodes):
+ node_key = layer.name + "_ib-" + str(i)
+ if node_key not in model._network_nodes:
+ continue
for inbound_layer in tf.nest.flatten(node.inbound_layers):
inbound_layer_id = str(id(inbound_layer))
+ assert dot.get_node(inbound_layer_id)
+ assert dot.get_node(layer_id)
+ add_edge(dot, inbound_layer_id, layer_id)
+ elif isinstance(layer, functional.Functional):
+ # if layer is Model, we connect based on input tensors
+ sources, targets = [], []
+ for node in layer.inbound_nodes:
+ for tensor in tf.nest.flatten(node.input_tensors):
+ sources.append(tensors_map[tensor.name])
+ for tensor in tf.nest.flatten(layer.input):
+ targets.append(str(id(tensor.node.layer)))
+ while len(targets) < len(sources):
+ targets.append(layer_id)
+ for s, t in zip(sources, targets):
+ add_edge(dot, s, t)
+ if is_wrapped_model(layer):
+ name = sub_w_first_node[layer.layer.name].get_name()
+ add_edge(dot, layer_id, name)
+ else:
+ for i, node in enumerate(layer._inbound_nodes):
+ node_key = layer.name + "_ib-" + str(i)
+ if node_key not in model._network_nodes:
+ continue
+ for inbound_layer in tf.nest.flatten(node.inbound_layers):
+ inbound_layer_id = str(id(inbound_layer))
if not expand_nested:
assert dot.get_node(inbound_layer_id)
assert dot.get_node(layer_id)
@@ -320,19 +362,10 @@
inbound_layer, functional.Functional
) and not is_wrapped_model(inbound_layer):
# if current layer is not Model or wrapped Model
- if not isinstance(
- layer, functional.Functional
- ) and not is_wrapped_model(layer):
+ if not is_wrapped_model(layer):
assert dot.get_node(inbound_layer_id)
assert dot.get_node(layer_id)
add_edge(dot, inbound_layer_id, layer_id)
- # if current layer is Model
- elif isinstance(layer, functional.Functional):
- add_edge(
- dot,
- inbound_layer_id,
- sub_n_first_node[layer.name].get_name(),
- )
# if current layer is wrapped Model
elif is_wrapped_model(layer):
add_edge(dot, inbound_layer_id, layer_id)
@@ -342,16 +375,10 @@
add_edge(dot, layer_id, name)
# if inbound_layer is Model
elif isinstance(inbound_layer, functional.Functional):
- name = sub_n_last_node[
- inbound_layer.name
- ].get_name()
- if isinstance(layer, functional.Functional):
- output_name = sub_n_first_node[
- layer.name
- ].get_name()
- add_edge(dot, name, output_name)
- else:
- add_edge(dot, name, layer_id)
+ sources = []
+ for tensor in tf.nest.flatten(layer.input):
+ source = tensors_map[tensor.name]
+ add_edge(dot, source, layer_id)
# if inbound_layer is wrapped Model
elif is_wrapped_model(inbound_layer):
inbound_layer_name = inbound_layer.layer.name
@@ -360,6 +387,7 @@
sub_w_last_node[inbound_layer_name].get_name(),
layer_id,
)
+ dot._tensors_map = tensors_map
return dot
Note that I modified the function a bit to print an asterisk for the non-trainable layers. I found this useful.
